Onboard environments.

An environment in Portainer is a managed target: a Docker host, a Swarm cluster, a Kubernetes cluster, a Podman host, an edge device, or a fleet of them. The Management Server holds one representation per environment; every other piece of Portainer (RBAC, policies, GitOps, alerting, add-ons) operates against environments as first-class objects.

The abstraction matters because it hides differences between runtimes for the operator. RBAC on a Docker environment and RBAC on a Kubernetes environment use the same team, role, and access-control primitives; a GitOps workflow can target both; a policy attached to an environment group applies across whatever mix of Docker, Swarm, Kubernetes, and Podman environments the group contains, as long as the policy's environment-type applicability includes them.

An older name for environments still appears in some UI corners and older docs: endpoints. If a customer mentions endpoints they mean environments; the term is legacy but the storage key is still called endpoint in the datastore. Do not correct them; use whichever word they use.

Every environment is added one of two ways: as an existing environment that Portainer connects to (an already-provisioned Docker or Kubernetes system where you install an agent, or paste a kubeconfig, or generate an edge key), or as a provisioned environment where Portainer stands up the substrate itself (KubeSolo directly, Talos through Sidero Omni).

Existing-environment onboarding is the common case. Most customers have runtimes already; they are adding Portainer to govern what they have, not to replace it. Provisioned onboarding is the operator control plane earning its keep at the substrate layer: when you want a cluster where none exists, and you want Portainer to be the surface that owns it end-to-end.

Neither path is better. Every customer estate has some of both, and Portainer treats them identically once the environment is registered. The difference lives in how the environment got there, not what you do with it after.

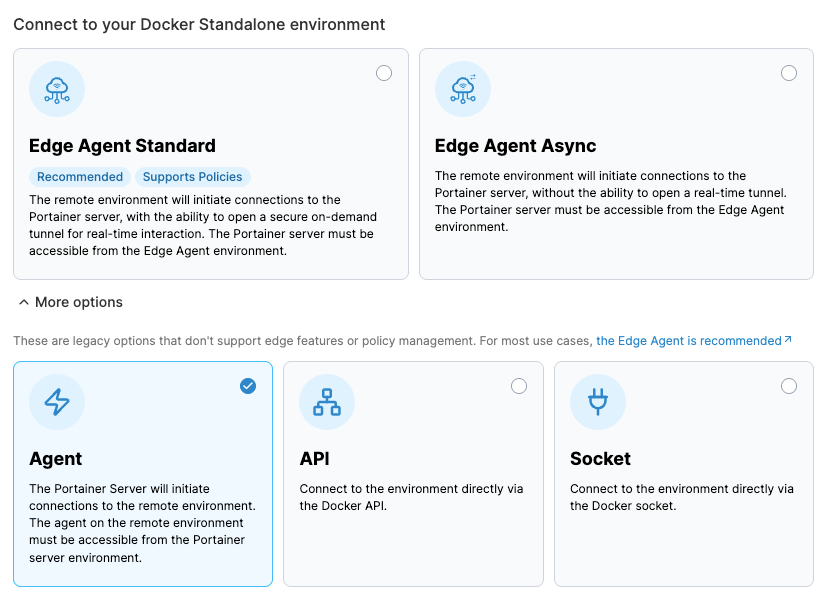

The Environment Wizard's Docker Standalone path presents three sub-paths: direct socket (only when the Docker host is the same host running Portainer, which is a lab convenience rather than a production pattern), Portainer Agent (the recommended approach for a remote Docker host on your own network), or API URL (a raw Docker API endpoint, unauthenticated by default; not recommended without TLS in front).

The Agent path is what a production install uses. Install the Portainer Agent as a container on the Docker host (a docker run from the current install command in docs.portainer.io), set the AGENT_SECRET environment variable if you want to lock down the association before you register from the server, expose port 9001, and register the agent's address from the Management Server (Environments → Add environment → Docker Standalone → Portainer Agent, then enter the agent host and port).

Set AGENT_SECRET deliberately. An agent that is never associated with a server and has no explicit AGENT_SECRET will terminate itself after 72 hours (the AGENT_SECRET_TIMEOUT default) as a security measure. If a customer reports "the agent randomly stopped after three days," this is almost always why. Fix: set the secret before deployment, or register the agent from the server before the timeout expires.

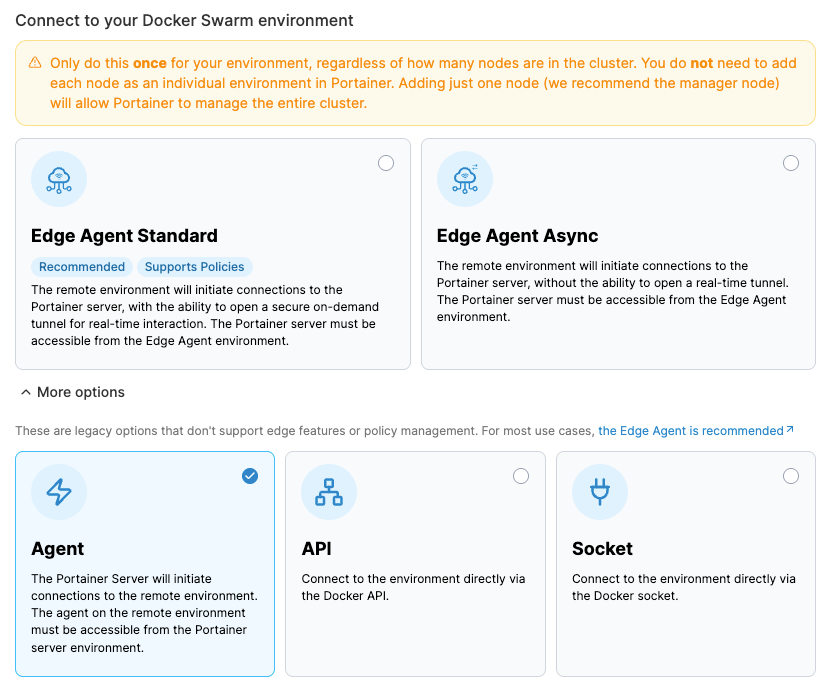

Docker Swarm is added the same way as Docker Standalone but the Portainer Agent is deployed as a service, not a container, so every node in the swarm runs one instance of the agent. That is what lets Portainer target specific nodes for stack placement decisions (through the X-PortainerAgent-Target header) and stream logs from any node without you knowing which one has the container.

The agent service uses serf-based cluster membership between agent instances to coordinate; the Management Server talks to one of them (whichever is behind the swarm's routing mesh on the published port), and that agent proxies through to whichever node holds the target container.

Reference-architecture guidance on Swarm sizing: three managers is the practical minimum for anything you would call production, and Portainer defaults line up with that expectation. A single-manager Swarm should probably be a Docker Standalone install instead.

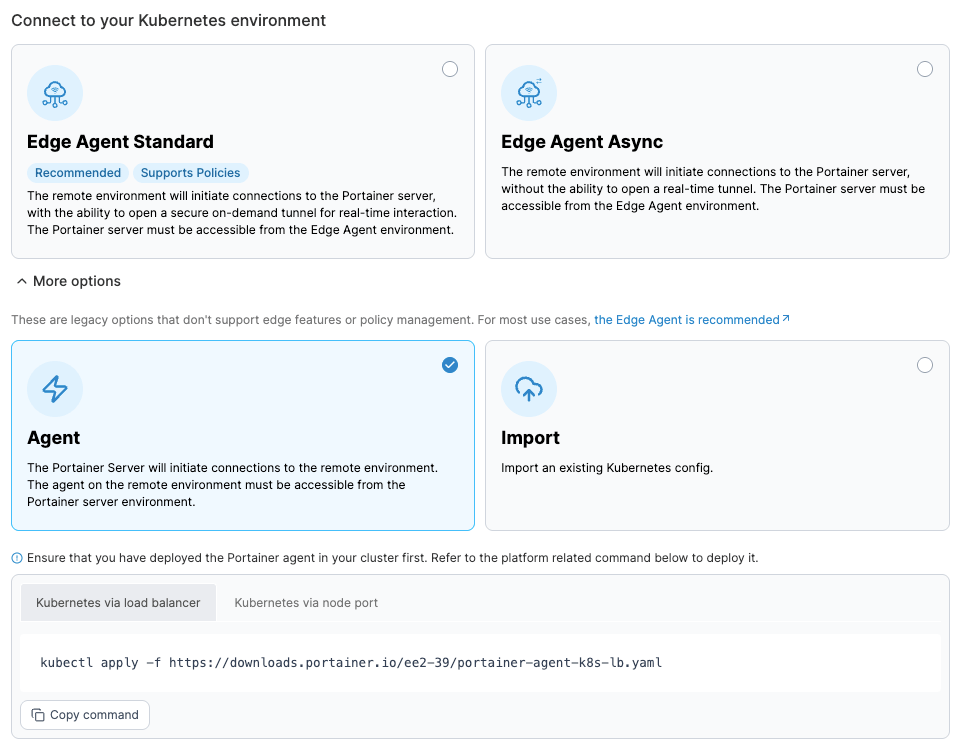

Self-managed Kubernetes onboarding installs the Portainer Agent as a Deployment (one replica) plus a headless Service. The agent uses the in-cluster service account by default, which is why namespace-level RBAC works properly out of the box: non-admin Portainer users act through a user-scoped Kubernetes client built around their own service account and token, not the cluster-admin credentials the agent was installed with.

Deployment methods for the agent: apply a YAML manifest published by Portainer (the wizard hands you the exact manifest for your version), or install via Helm chart. Either way, expose the agent through a NodePort or LoadBalancer service that the Management Server can dial, and register that address from the server.

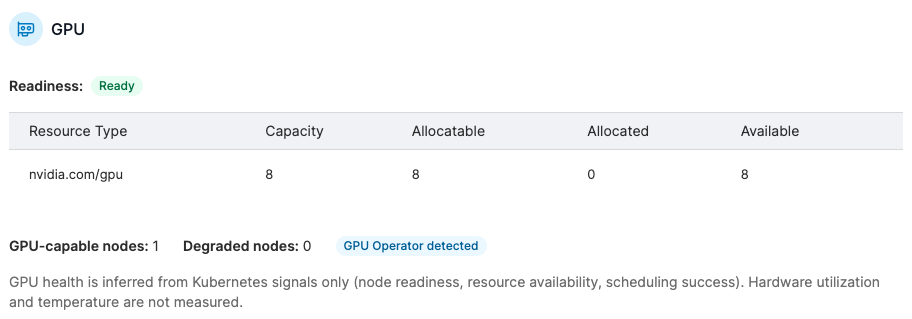

On a Kubernetes cluster, the Portainer Agent also participates in advertising GPU capability. If the cluster runs the NVIDIA GPU operator, set WITH_GPU_OPERATOR on the agent environment (the Portainer Helm values expose this); the agent will emit the Portainer-Agent-GPU-Operator header, and the GPU visibility endpoint (Environments → the cluster → Kubernetes → Cluster → GPU) will populate with per-node GPU details and GPU-requesting workloads. Without the flag, the GPU page shows empty, and the answer is almost always the agent flag rather than a missing operator.

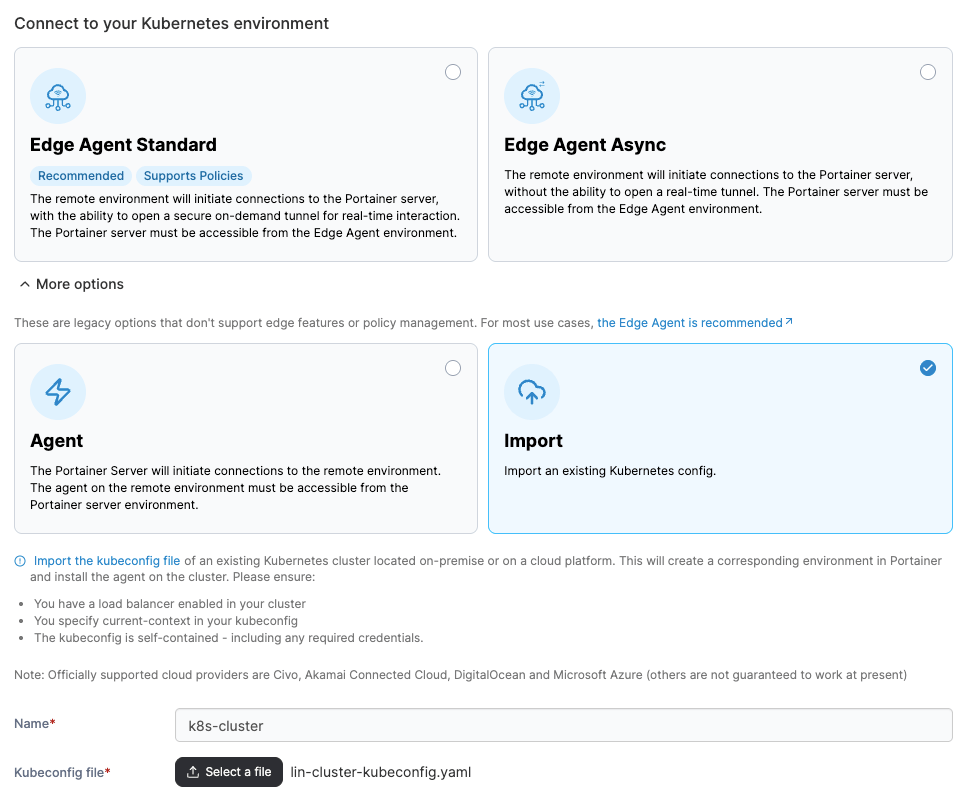

Managed Kubernetes clusters onboard the same way as self-managed ones: install the agent as a Deployment plus Service, expose it to the Management Server, register the address. Nothing about the fact that the cluster is managed by a cloud provider changes the onboarding shape.

What does change is credential handling. If you plan to have Portainer provision new managed clusters, or reach the cluster's control plane API for advanced operations, you set up cloud credentials in Portainer for that provider (Environments → Add environment → the KaaS path). Those credentials get stored as cloud credentials in the datastore and are used to build the appropriate cloud SDK client at operation time.

In most cases the answer to a "we already have AKS/EKS/GKE, just manage what we have" question is: install the agent using the wizard's provided manifest, expose the service, add the environment, done. Provisioning new clusters from Portainer is a legitimate feature, but it is not required to manage a cluster that already exists.

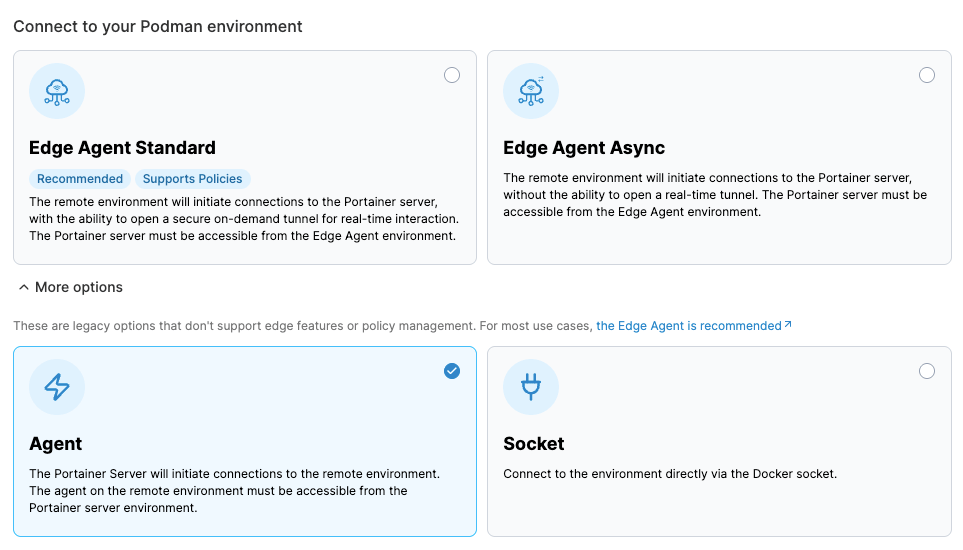

Podman is a Docker-API-compatible container engine some enterprises pick for its rootless posture and its lack of a persistent daemon. Portainer manages Podman hosts through the Podman path in the Environment Wizard; the Portainer Agent installs as a container on the Podman host and speaks to the Podman socket the way it speaks to the Docker socket on a Docker host.

Most of the Docker Standalone operating model applies. Container operations, stack deployment (compose), image management, volumes, networks; all work. The differences show up at the edges (specific socket paths, rootless considerations, quadlet integration if the customer uses it), and Portainer handles them as long as the agent is deployed the way the wizard describes.

Podman is not covered further in the lab because it does not appear in the four-VM baseline; if you have a customer using Podman, this chapter and the docs are the reference.

KubeSolo is Portainer's lightweight single-node Kubernetes for cases where full cluster semantics are the wrong tool: constrained hardware, edge appliances, small management VMs, environments where clustering delivers no benefit. It is Kubernetes-compatible without the multi-node overhead, and it is what your lab is running.

To provision a KubeSolo instance from Portainer, the target host has to be reachable and has to meet the KubeSolo prerequisites (a supported Linux, the required kernel features, and a bootstrap agent). The wizard walks a target-host installation, deploys KubeSolo, and then attaches the resulting cluster as a managed Kubernetes environment automatically, so you never have to install the Portainer Agent separately.

This is the recommended pattern for small deployments and for the Portainer Management Server host itself in customer engagements. It gives the customer a real Kubernetes environment to run things on (or to host Portainer on) without the operational weight of a full multi-node cluster.

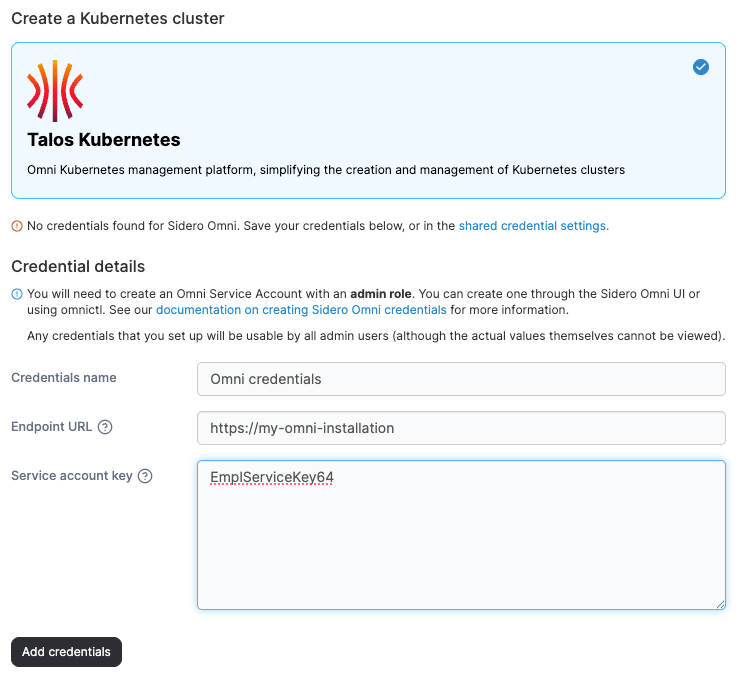

Sidero Omni is the management plane for Talos Linux, the immutable-OS Kubernetes distribution. Portainer integrates with a customer's Omni installation through a cloud credential of type omni (Omni endpoint plus a Sidero service account key), and once configured, Portainer can inventory machines, define clusters, provision them, and automatically deploy its edge agent into the resulting cluster so it appears as a managed environment.

The flow: register an Omni credential (Environments → Cloud credentials → add Omni), define a cluster spec through the Portainer UI (control plane machines, workers, cluster-level patches, per-machine install disk and user disk, network interfaces), and submit. Portainer calls Omni's cluster template API, tracks the provisioning through a registry (which is why an interrupted provisioning survives a Portainer restart; a recovery step runs at startup), and once Omni reports the cluster ready, deploys the Portainer edge agent into it (namespace, service account, cluster role binding, agent Deployment with an edge key). From then on the environment behaves as a normal edge Kubernetes endpoint.

The compatibility check between Talos and Kubernetes versions runs before provisioning; unsupported combinations get rejected at the API rather than causing a mid-provisioning failure. If a customer reports "the version I picked was rejected," they need to consult the current Talos/Kubernetes compatibility matrix and try again.

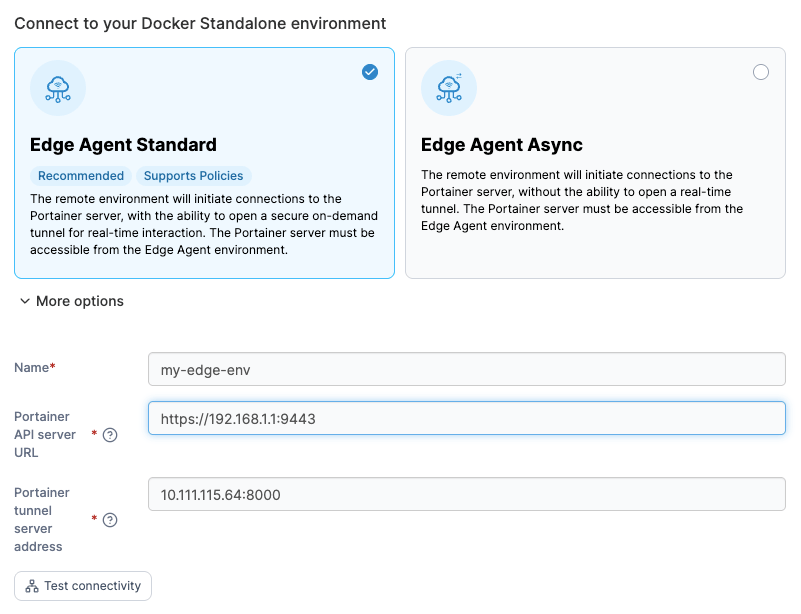

Edge tunnel mode is what you use when the environment has outbound HTTPS to the Portainer server but no inbound path from the server to it. Regional Kubernetes clusters, branch-office Docker hosts, remote sites behind NAT; anywhere the agent can dial out and the server cannot dial in.

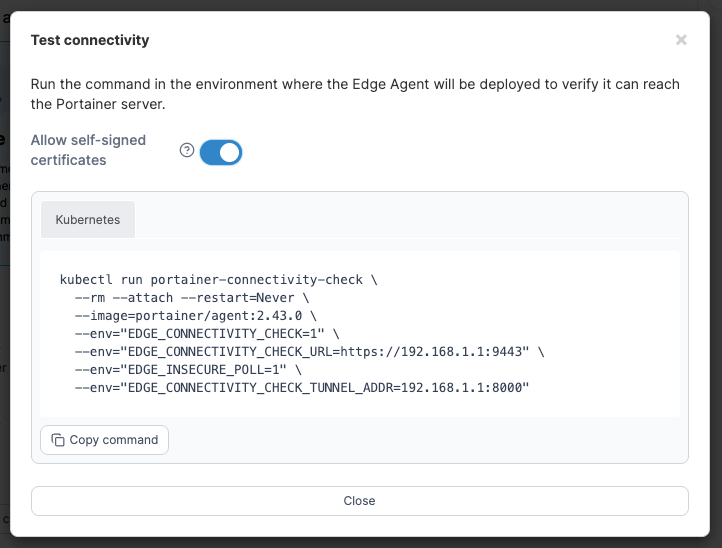

The flow: on the Management Server, generate an edge key (Environments → Add environment → Edge Agent → Standard). The wizard produces a base64 edge key encoding the Portainer instance URL, the tunnel server address, the tunnel server fingerprint, and the endpoint ID. Paste that key into the agent's environment on deploy (EDGE=1, EDGE_KEY=<key>, EDGE_ID=<unique-per-device>). The agent starts polling; the environment appears in Portainer at the next poll.

Two edge-key details that cause the majority of triage tickets. The tunnel address baked into the key is derived from the edge URL hostname plus --tunnel-port by default; if the reachable tunnel endpoint at the customer's site is different from the UI hostname (typical when the UI is behind a corporate proxy but the tunnel port is exposed on a different hostname), set --edge-tunnel-server-address on the server and re-issue keys. Second: the agent polls the URL inside the edge key, not whatever URL the server currently thinks it has. If the server moves behind a new load balancer, existing edge keys keep polling the old URL; regenerate.

A tunnel key with an HTTP (not HTTPS) URL will still work but the agent will log "This agent has been configured using an insecure connection, which can limit functionality." Do not deploy a customer environment on HTTP.

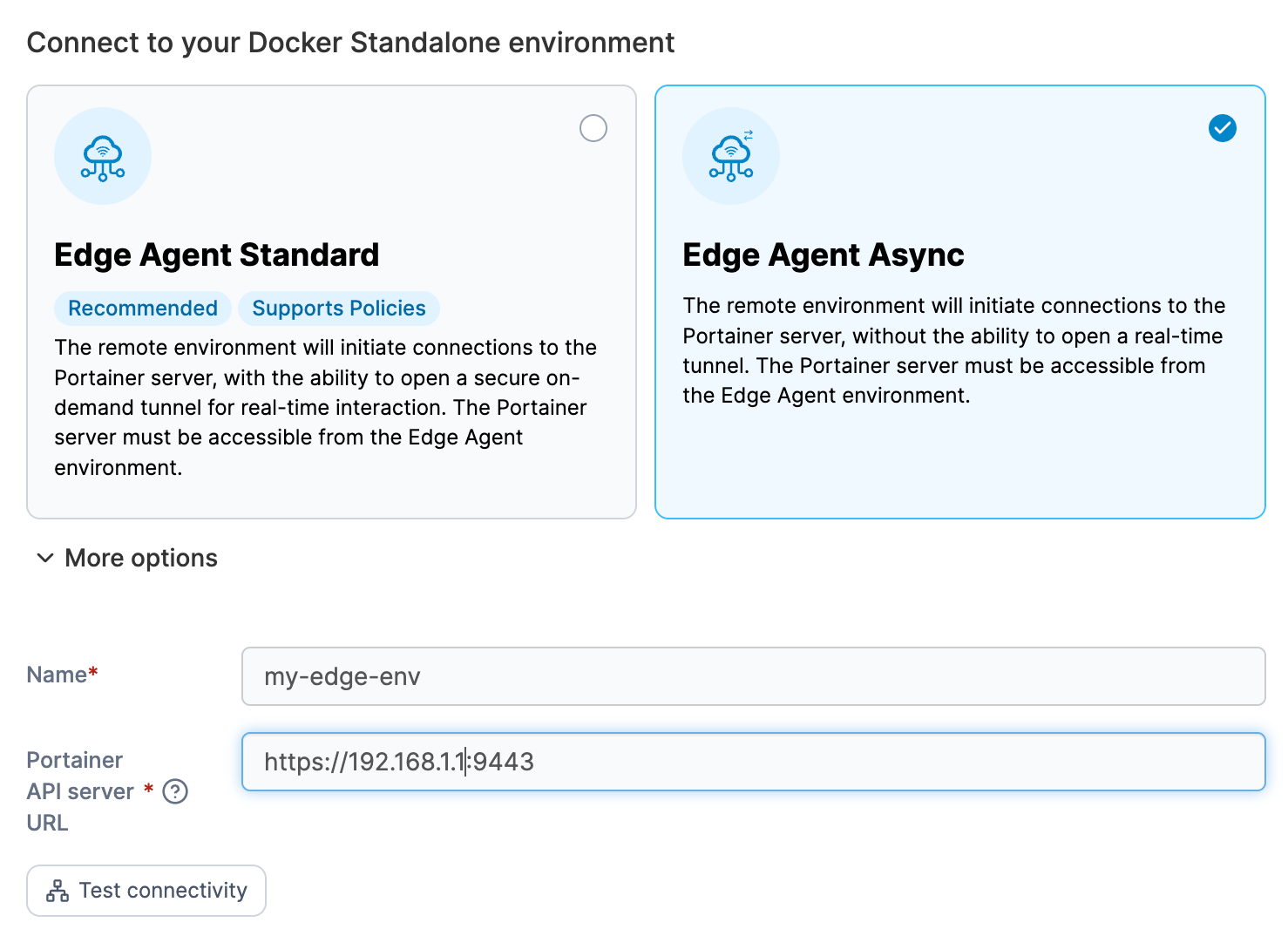

Async mode is what you use when the environment cannot hold an open tunnel: intermittent connectivity, satellite or cellular uplink, air-gapped-with-sync-windows, or a security posture that explicitly forbids interactive management to certain sites. Async removes tunnels entirely and replaces them with a command queue: the agent snapshots and pings the server on independent intervals, the server hands back queued commands, and side-effectful actions execute asynchronously.

The flow is the same as tunnel mode with one flag change: deploy the agent with EDGE=1 and EDGE_ASYNC=1, and mark the endpoint as async on the Portainer side (the server's AsyncMode flag on the endpoint has to match the agent's environment; if they disagree, tunnels are refused with "cannot open a tunnel for async edge environments" and commands queue but never execute).

Three intervals are dictated by the server for an async endpoint: ping, snapshot, and command. Set them at the endpoint level or fall back to the global Settings defaults. Longer intervals mean lower bandwidth and slower reactivity; a 5-minute command interval means server-side actions take up to 5 minutes to reach the device. This is a legitimate tradeoff for cellular or satellite-connected fleet; it is not a defect.

If you have async fleet and you want policies to reach it, turn on the async-policies feature flag (Module 5, chapter 9). Without it, policies attached to a group containing async environments simply do not distribute to those environments. This is by design (async policy distribution is opt-in), and it is a common cause of "why aren't my policies applied on the industrial sites."

Automatic Edge Environment Creation (AEEC)

An unknown agent presenting a valid global edge key gets its environment created on the fly by the async handler. The environment lands in the edge groups, environment group, and tags specified by the agent's environment variables (EDGE_GROUPS as colon-separated group IDs, PORTAINER_GROUP for the environment group ID, PORTAINER_TAGS for tag IDs). Type and container engine come from the agent's platform headers. This is how you provision thousands of edge devices without pre-registering each one: bake the same global edge key and the group/tag hints into your device image, and every device shows up correctly grouped on first contact.

Trust behavior on AEEC: the endpoint's UserTrusted flag is set from the server's TrustOnFirstConnect setting; if that is off, the endpoint appears in the waiting room and an admin has to trust it before it can do anything.

Portainer has three grouping primitives, and they are not interchangeable.

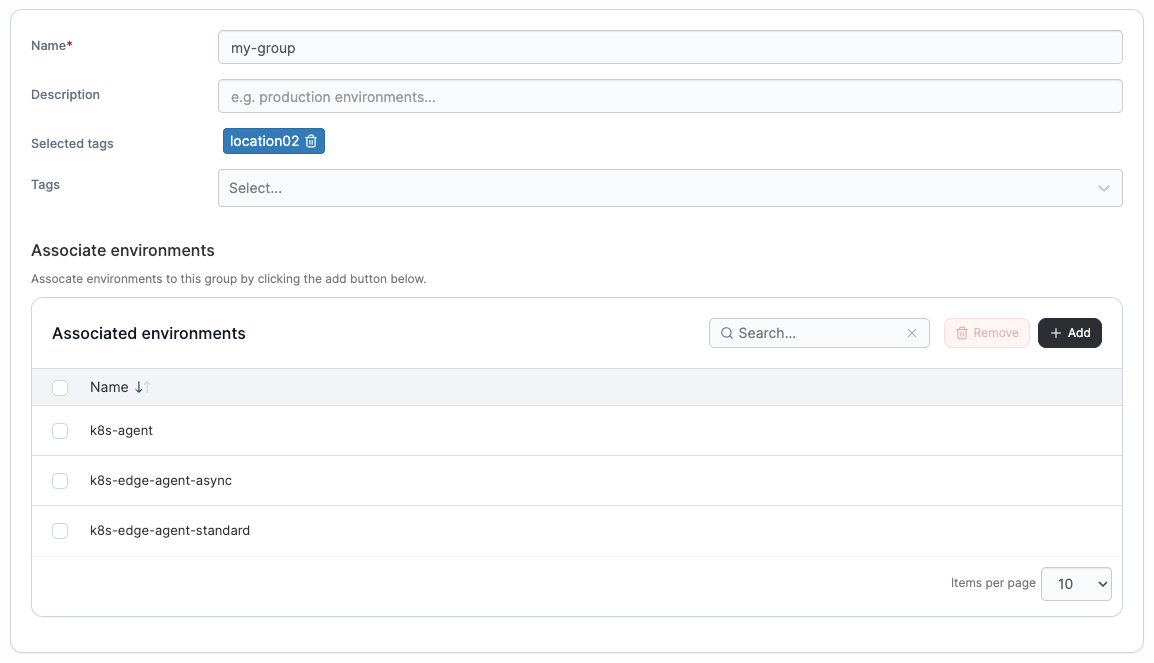

Environment groups are the primary scoping unit for RBAC and for policies. An environment belongs to exactly one environment group; team-to-role assignments happen against an environment group, not against individual environments. Get the environment groups right first; roles become simple after that.

Tags are freeform labels. An environment can have many tags. Tags are used for filtering the environment list, for selecting environments in some UI operations, and for edge stack targeting where you want dynamic membership rather than static edge group membership.

Edge groups are used specifically for edge stack, edge job, and edge configuration targeting. An edge group can be static (a specific list of edge environments) or dynamic (defined by tags). Dynamic edge groups mean an edge stack deployed to "all Docker edge devices with the retail-store tag" automatically covers new devices added to that tag without you re-deploying anything.

Trust is a separate flag on each environment. By default a new edge environment (via generated key or AEEC) is untrusted, meaning it can register and poll but cannot execute any action; an admin has to explicitly trust it from the waiting room. Turn on TrustOnFirstConnect in Settings if you want the waiting room bypassed. Untrusted devices attempting API access get "the device has not been trusted yet"; attempts to open a tunnel are refused for the same reason.

Your Portainer server now has environments to manage. Module 7 is the fat one: it walks the twelve capabilities Module 1 introduced, in the depth an operator actually needs. It is designed to be dipped into rather than read cover to cover, because seven of the twelve chapters have real depth and the material is dense; treat it as your reference for advanced configuration.

Take another backup before you start Module 7. You are about to configure a lot of governance state (RBAC assignments, policies, registries, alerts) and a clean rollback point saves you if you want to reset the lab.
